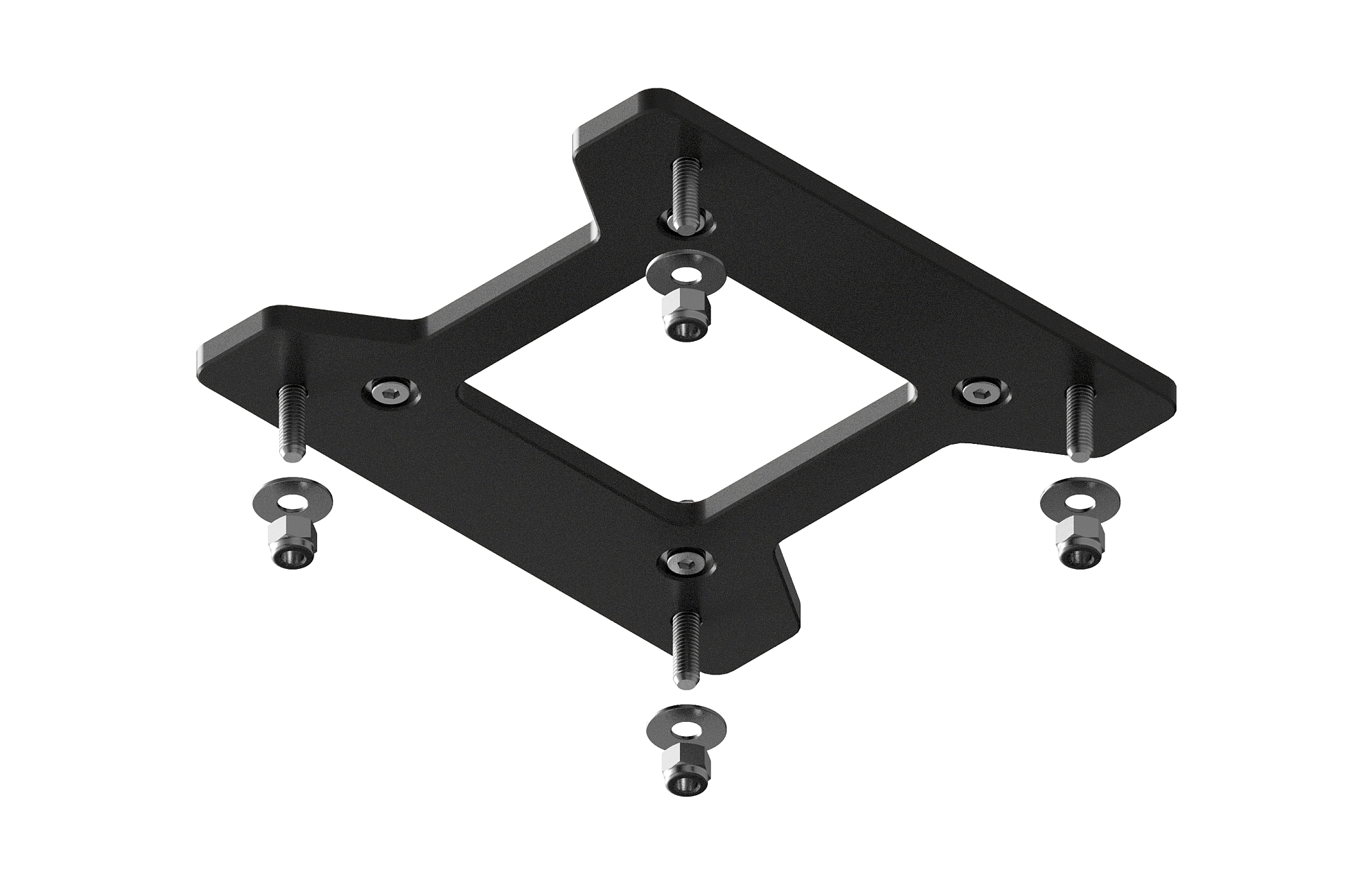

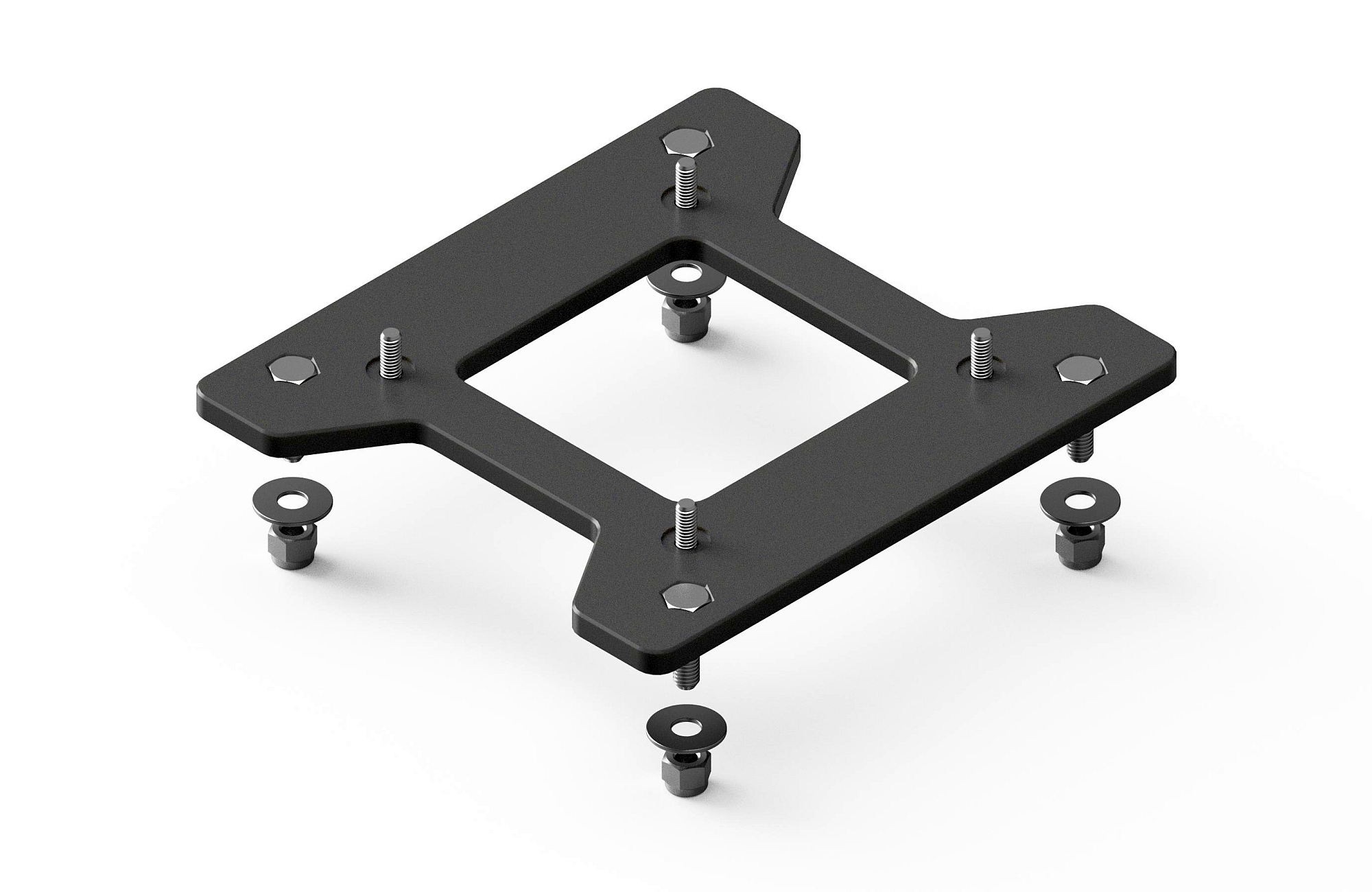

VESA 75 to VESA 100 Adapter Plate Set (for MINI Series Button Boxes only!)
- 3D printed Adapter Plate 135mm x 120mm x 5,5mm - 1pcs
- Hex Head Screws (black) M5x16 -4pcs
- Hex Socket Head Screws (chrome) M4x12 -4pcs
- Washer Spacers M5 -4pcs
- Hex Lock Nuts M5 - 4pcs
1. Insert Hex Head Screws (M5) into hex shaped holes of the Adapter Plate
2. Screw the Adapter Plate to Button Box using M4 Hex Socket Head Screws (firm, but do not overtighten)
3. Attach Button Box on the VESA 100 compatible plate or mount.
4. Secure from the bottom side using M5 Hex Lock Nuts with M5 washers.
|
